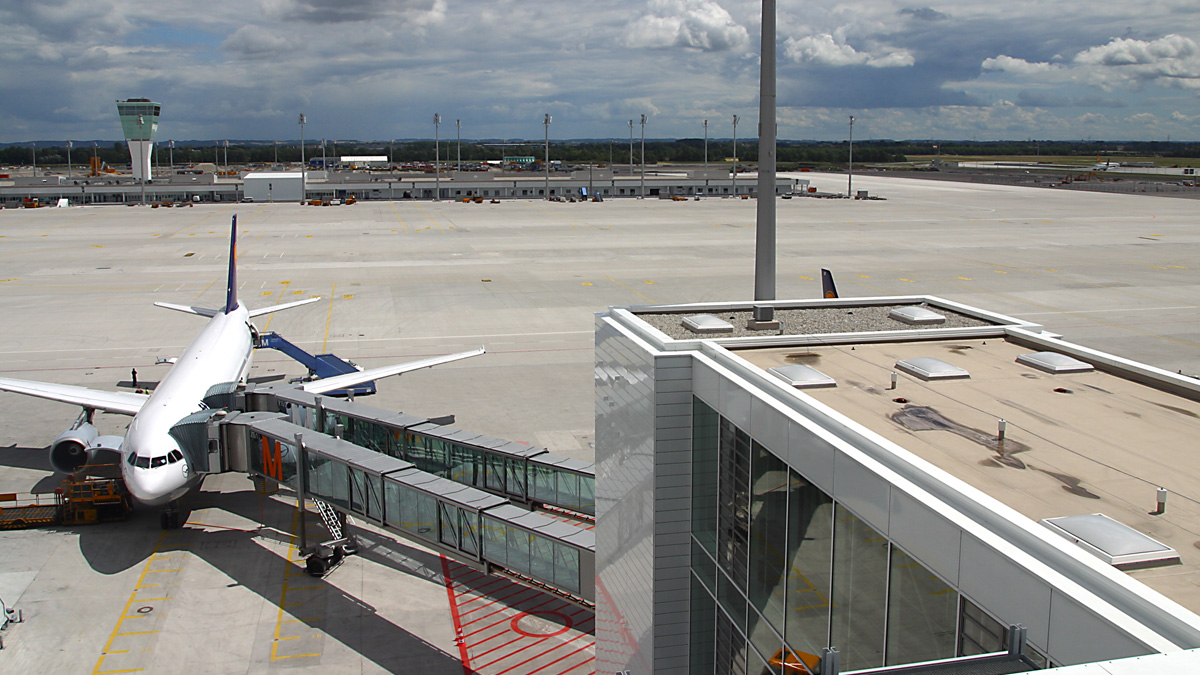

Terminal 2, Munich

Solutions for building control systems

Place / country:Munich, Germany

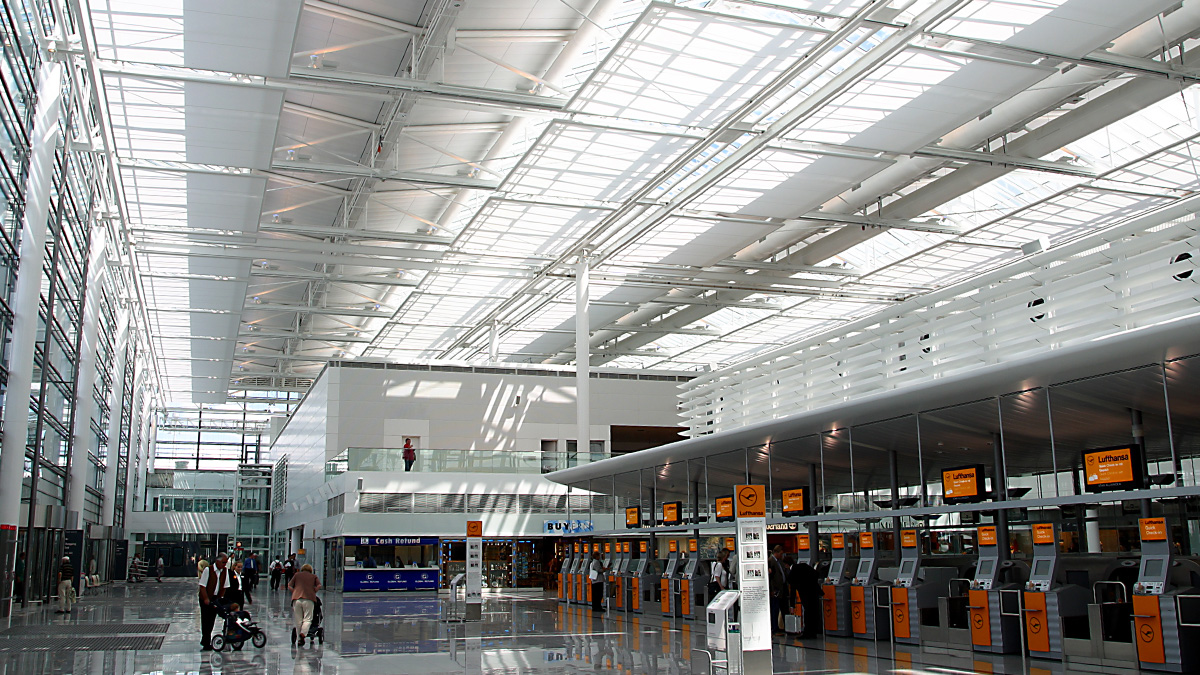

Building type:Departure Lounge
Solutions:CI System Glass Architecture KWS 60
Solar control insulation glass
Venetian blind systems
SHEV control technology
Main control and sub-control panels
SPS controls

Control of all natural smoke exhaust devices in combination with solar protection and climate optimisation

  • Connection to BMS "fire coordinator" and "building management system climate optimisation"

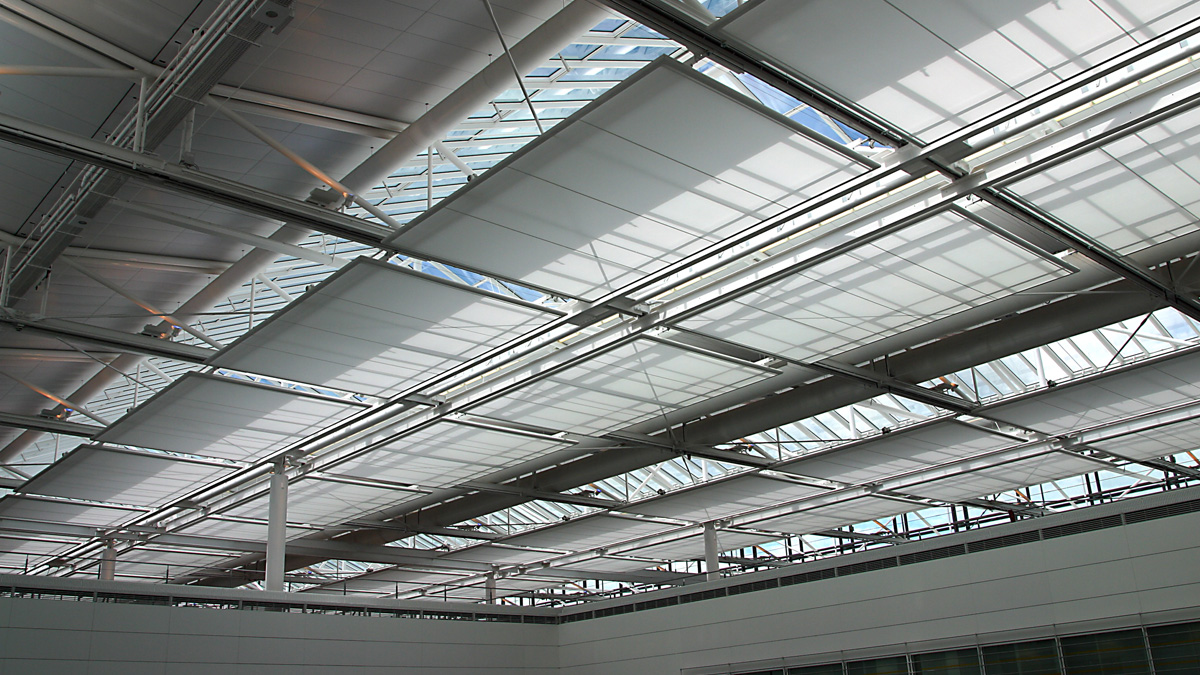

  • Venetian blind system activated via 230 LON bus modules

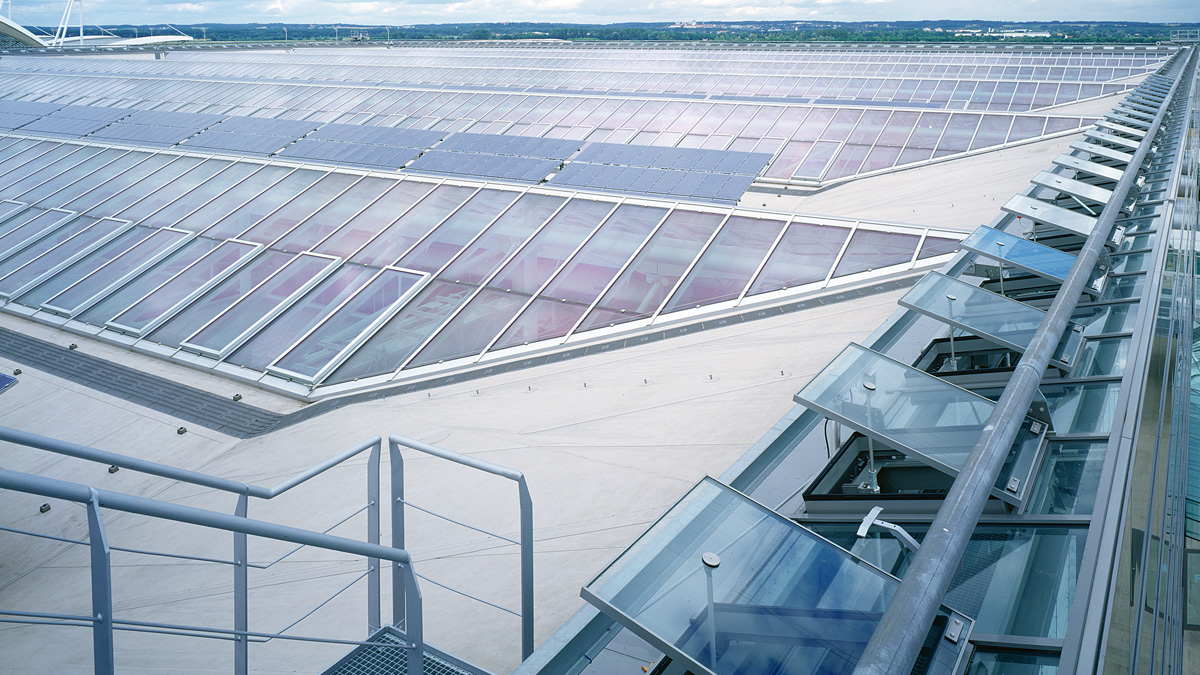

  • Glass louvers for supply air and air vents

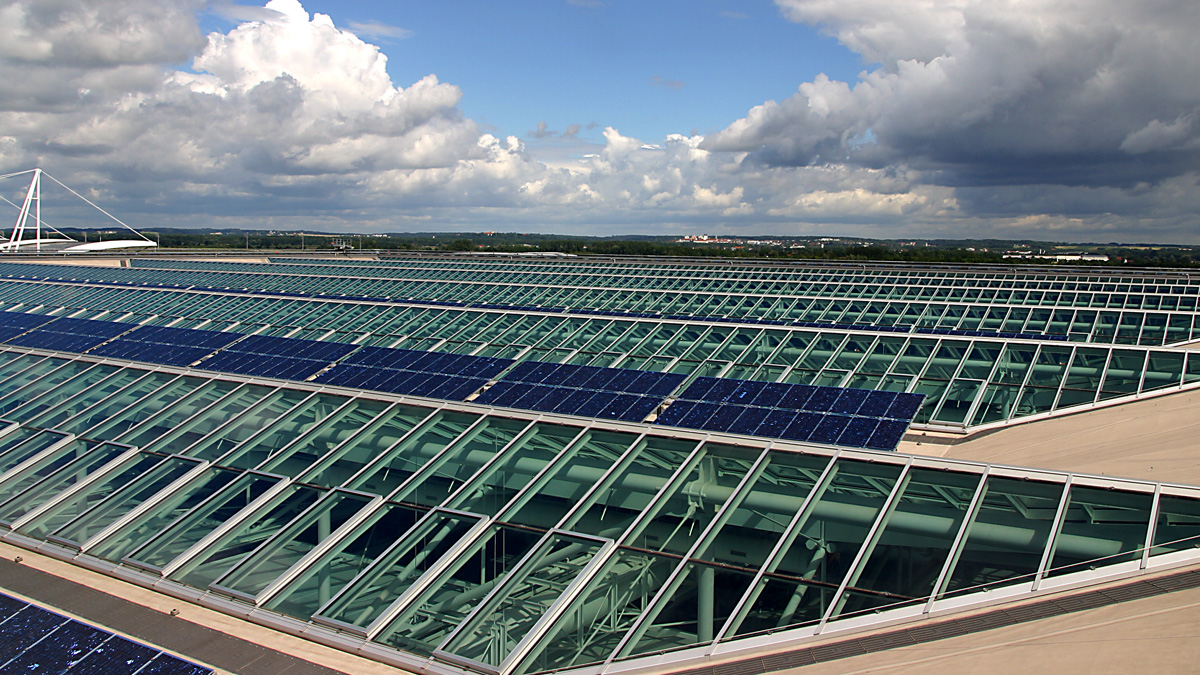

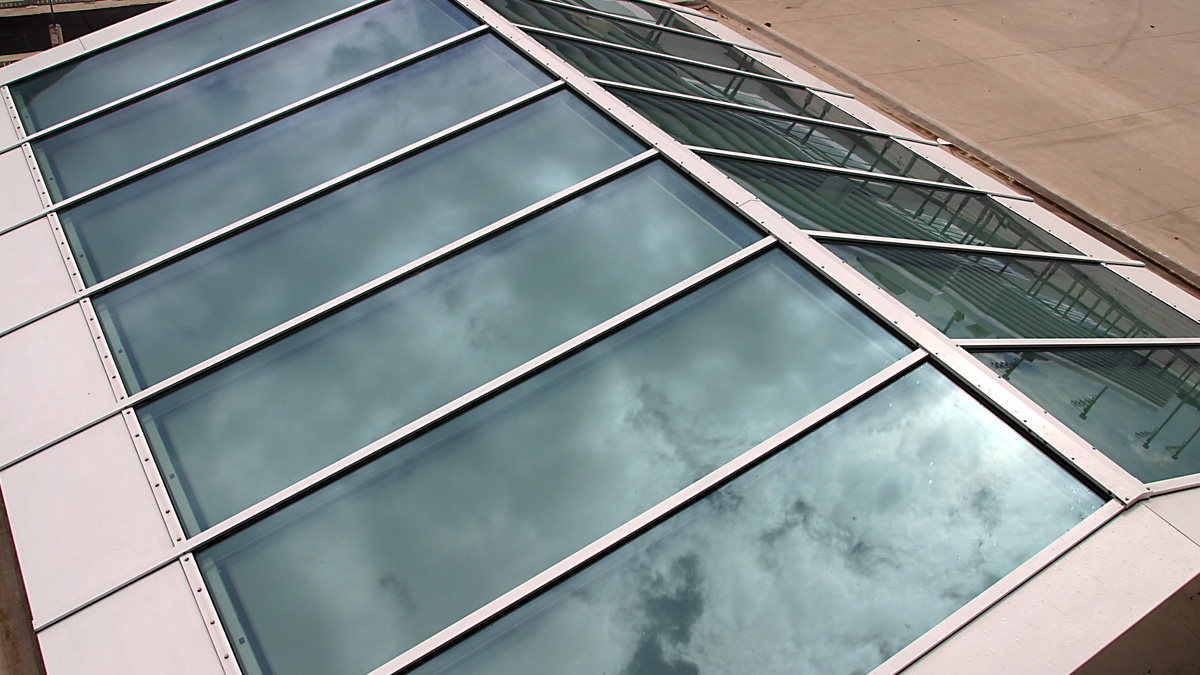

  • CI System Glass Architecture KWS 60 ridged roof glazing, 15° pitch
  • Solar control insulation glass with Stopray Carat PVB film, 47% light transmission, G value = about 25%, Ug value = 1.1 W/(m²K)
